Transistor Functions

Transistors serve two fundamental functions in electronics: amplification and switching. They are at the heart of modern devices, making them more compact, efficient, and reliable.

• Amplification: In applications such as radios, the extremely weak signals transmitted through the air must be magnified before they can drive a loudspeaker. A transistor provides this gain, but the quality of the interconnects (solder joints, wire bonds, leadframes) directly affects the signal-to-noise ratio (SNR). Poor solder connections introduce parasitic resistance and noise, degrading the fidelity of amplified signals.

• Switching: In digital circuits, transistors switch on and off at nanosecond speeds. The solder alloy that connects the transistor package to the PCB must withstand thermal cycling (–40 °C to +125 °C in automotive, up to +150 °C in power modules) without cracking or delamination. Otherwise, electrical discontinuity leads to logic errors or even device failure.

[PICTURE TO BE INSERTED]

An Integrated Circuit (IC) or Large-Scale Integration (LSI) is essentially a collection of transistors packed together to perform complex operations, from computing to signal processing.

From a manufacturing perspective, these transistor packages (SOT, TO, or die-level ICs) must be reliably connected to circuit boards using soldering materials such as solder paste, solder wire, or solder spheres.

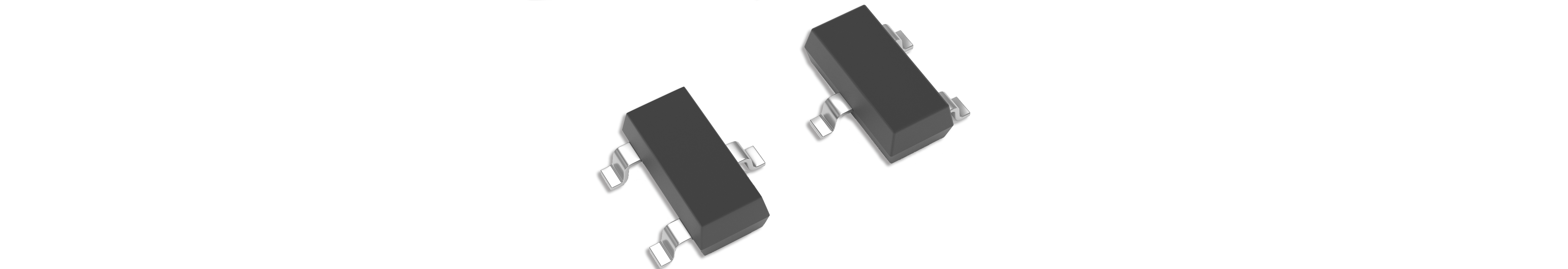

Classified according to the shape

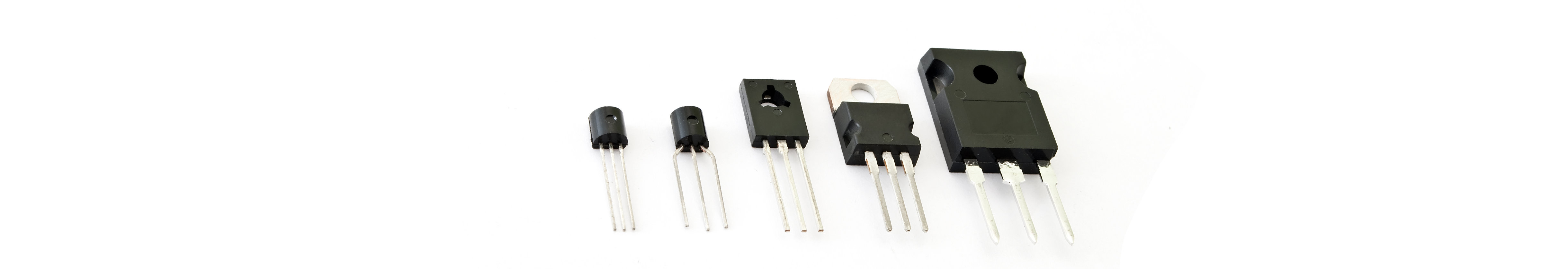

The size and shape of the transistor are determined by the power consumption and method of mounting. Broadly, transistors can be classified into leaded type and surface mounted type.

[PICTURE TO BE INSERTED]

Classification According to Construction

Transistors typically fall into two main types depending on their construction. These two types are bipolar junction transistors (BJT) and Field Effect Transistors (FET).

Bipolar Junction Transistor (BJT)

A Bipolar Junction Transistor (BJT) uses both electrons and holes to carry current, which is why it is called “bipolar.” It has three parts: the Emitter, Base, and Collector. There are two main types: NPN, the most common type where a small current at the base allows a larger current to flow from collector to emitter, and PNP, which works in the opposite way and is often used in analog circuits. Because a BJT can use a small current to control a larger one, it is often used for amplifying weak signals in radios or audio systems and as a simple electronic switch. Applications include audio amplifiers, radio frequency circuits, low-power switching, and power regulation in older electronic designs.

Field Effect Transistor (FET)

A Field Effect Transistor (FET) controls current with an electric field and uses only one type of charge carrier. Its three parts are the Source, Drain, and Gate, with the gate voltage controlling how much current flows between source and drain. The main types are the Junction FET (JFET), which is quiet and good for analog circuits; the MOSFET, which is the most widely used today and can be either enhancement mode (normally off) or depletion mode (normally on); and the IGBT, which combines the easy control of a MOSFET with the high current capacity of a BJT. FETs need very little input current, which makes them efficient, and they are used in nearly all modern electronics—from microchips and smartphones to motor drives, electric cars, and solar inverters.

[PICTURE TO BE INSERTED]

Classification According to Permissible Power

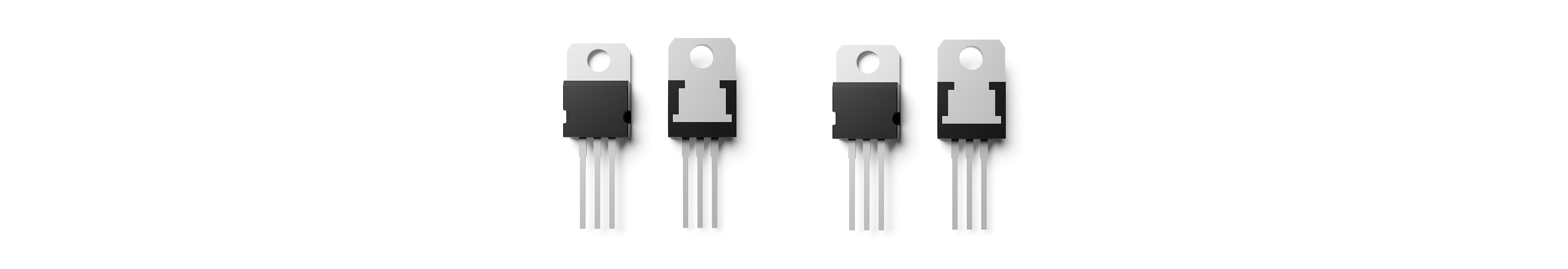

Transistors are broadly classified into small-signal transistors and power transistors, based on their maximum collector power dissipation (Pc). Small-signal transistors handle collector currents up to about 500 mA with Pc less than 1 W, and are usually epoxy-molded, making them suitable for low-power amplification and switching. Power transistors, with Pc of 1 W or more, can handle higher currents and power levels. They are larger in size for better heat dissipation and often come in metal cases or with heat sinks to manage thermal loads.

[PICTURE TO BE INSERTED]

Classification According to the Type of Integration

Transistors can be divided into discrete types and composite types. Discrete transistors are individually packaged devices, though they are less common today as most transistors are now integrated into ICs along with other components. Composite transistors combine two or more transistors in one package to enhance performance. Examples include Darlington transistors for higher current gain, digital transistors with built-in resistors for simplified circuit design, and transistor arrays that pack multiple transistors into a single package for compact and efficient designs.

[PICTURE TO BE INSERTED]

In transistor manufacturing and packaging, solder (or solder-like attach materials) is mainly used for:

• Die attach (solder layer bonding the silicon die to the package lead frame or substrate)

• Internal interconnects (bond wires or sometimes solder bumps in advanced modules)

• Lead finishing / plating (solderability checks, but not the same as PCB assembly)
