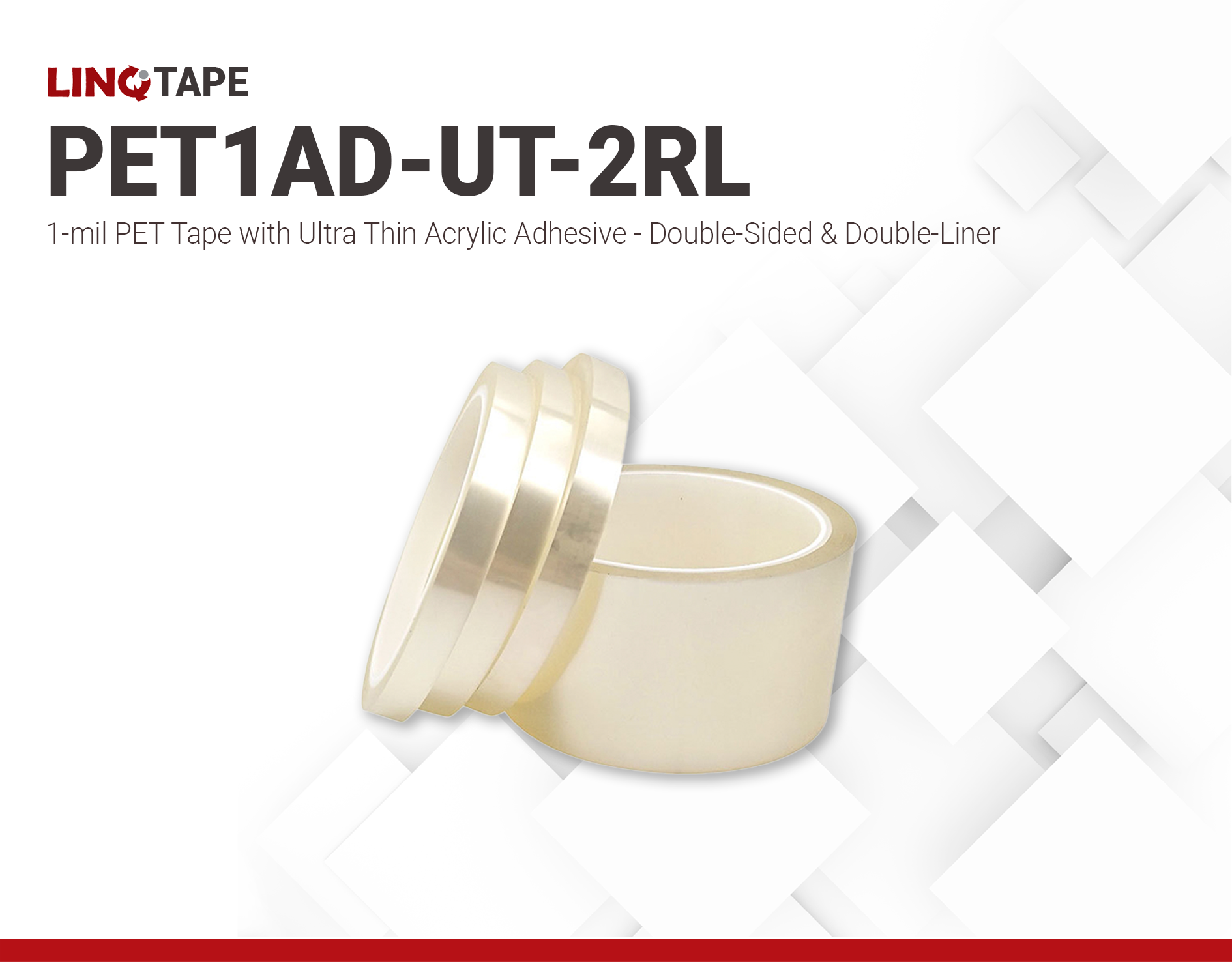

PET1AD-UT-2RL | 1-mil PET Tape with Ultra thin Acrylic Adhesive - Double sided & Double liner


Main features
  • 1 mil Polyester film
  • Double sided ultra thin acrylic adhesive
  • Total of 2 mil thickness

Product Description

PET1AD-UT-2RL is a 1-mil polyester film backing with an ultra thin pressure sensitive acrylic adhesive system on both sides and dual release liners.  This polyester tape is a no-residue tape designed for splicing and masking applications where high initial adhesion is required, but no residue once the tape is removed. It can be used to keep sheets in place for thin and precise die cutting applications.

PET1AD-UT-2RL is a high performance, flexible, polyester tape used in a wide range of applications. For applications with temperatures up to 180C, Polyester is the most effective and least expensive solution. It is used for high temperature masking in powder coating application and as PCB protective masking during various phases of printed circuit board (PCB) production.



Key Features:

  • No residue
  • Designed for splicing and masking
  • High initial adhesion
  • Can be used in die cutting applications
  • Flexible
Product Family
PET1AD-UT-2RL
508 mm
33 m

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 1 - 2 weeks Shipping in 1 - 2 weeks Shipping in 1 - 2 weeks
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Adhesive Layer
Adhesive Layer
A layer that is applied to one surface or both to bind items together and resist their separation
 Acrylic
Adhesive Thickness
Adhesive Thickness
Adhesive thickness indicates the thickness of an adhesive layer.

It refers to the adhesive thickness of a single side so for double sided tapes it always needs to be multiplied.
 12.7 µm
Film Thickness
Film Thickness
Film thickness is the thickness of a backing film without taking into account any coatings or adhesive layers. It is measured in micron and the conversion factor to mil is 0.039.
 25.4 µm
Release Liner
Release Liner
A paper or plastic-based film sheet used to prevent a sticky surface from prematurely adhering
 Double
Single or Double-Sided Adhesive
Single or Double-Sided Adhesive
Describes whether a tape is single- or double-sided. If it is single-sided, it has adhesive only on one side of the backing film. If it is double-sided, then it has adhesive on both sides of the backing film.
 Double
Special Layer Polyester
Total Thickness
Total Thickness
Total thickness is taking into account all the films, coatings, adhesives, release liners and special layers and is the maximum thickness of a film or tape.
 50.8 μm
