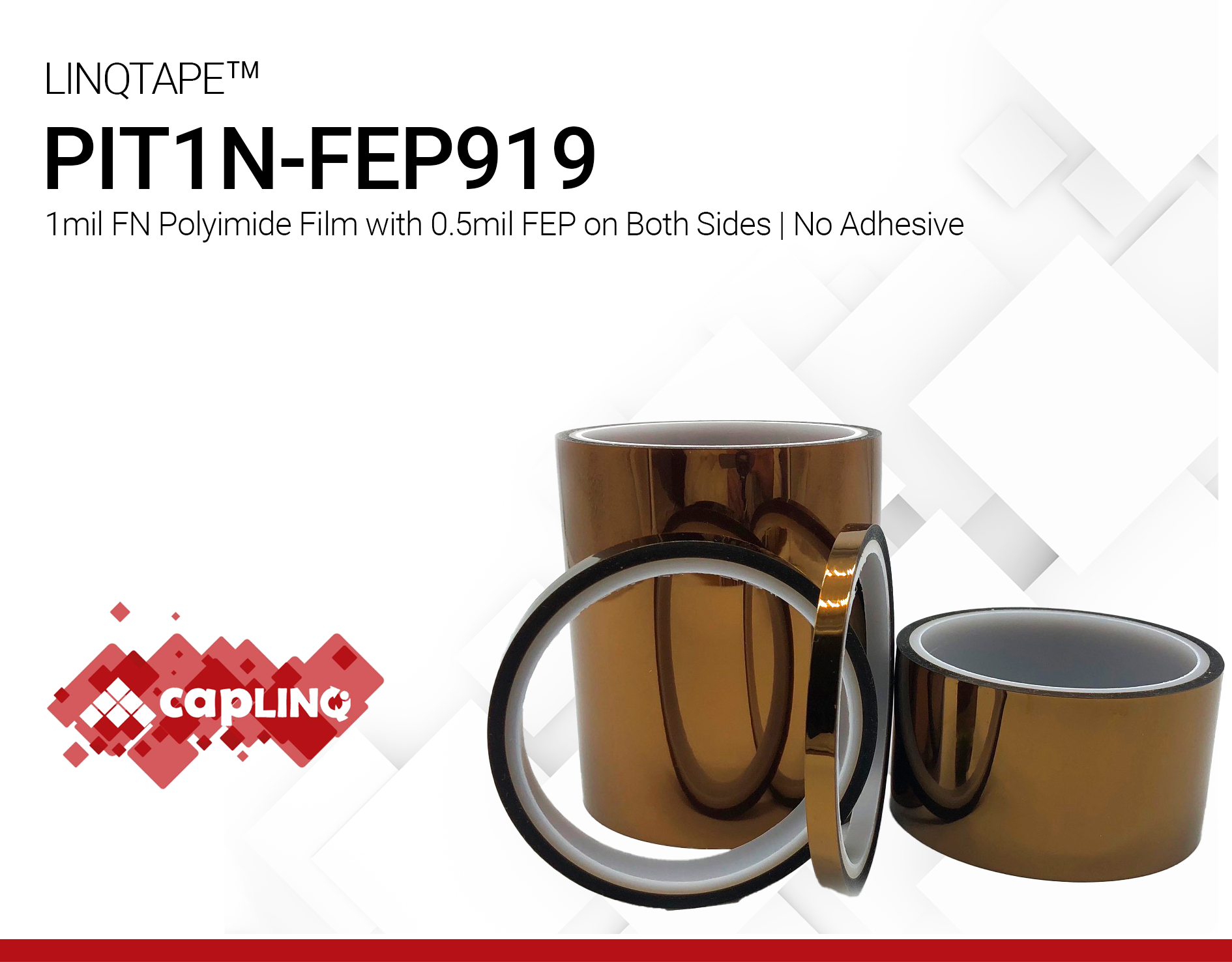

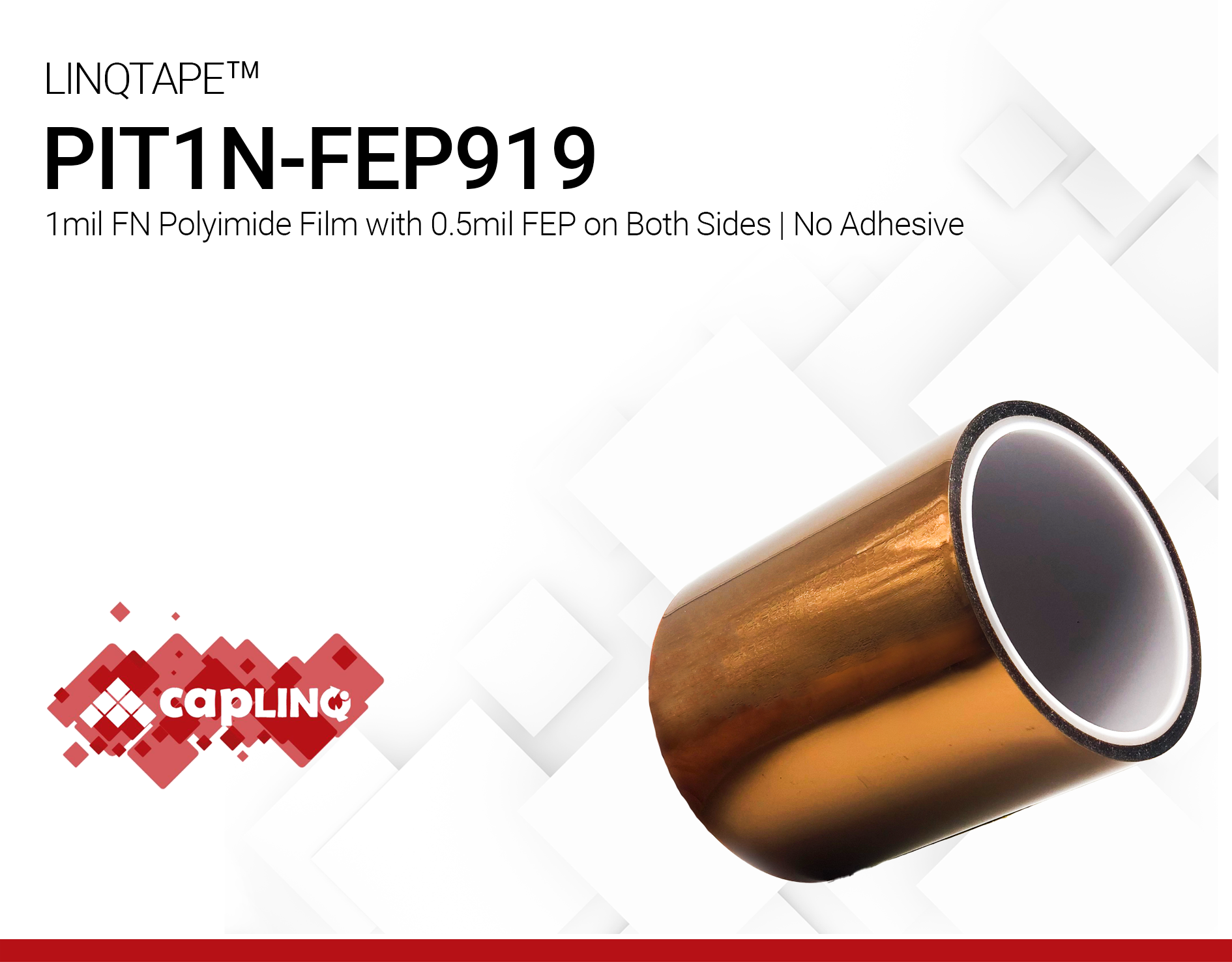

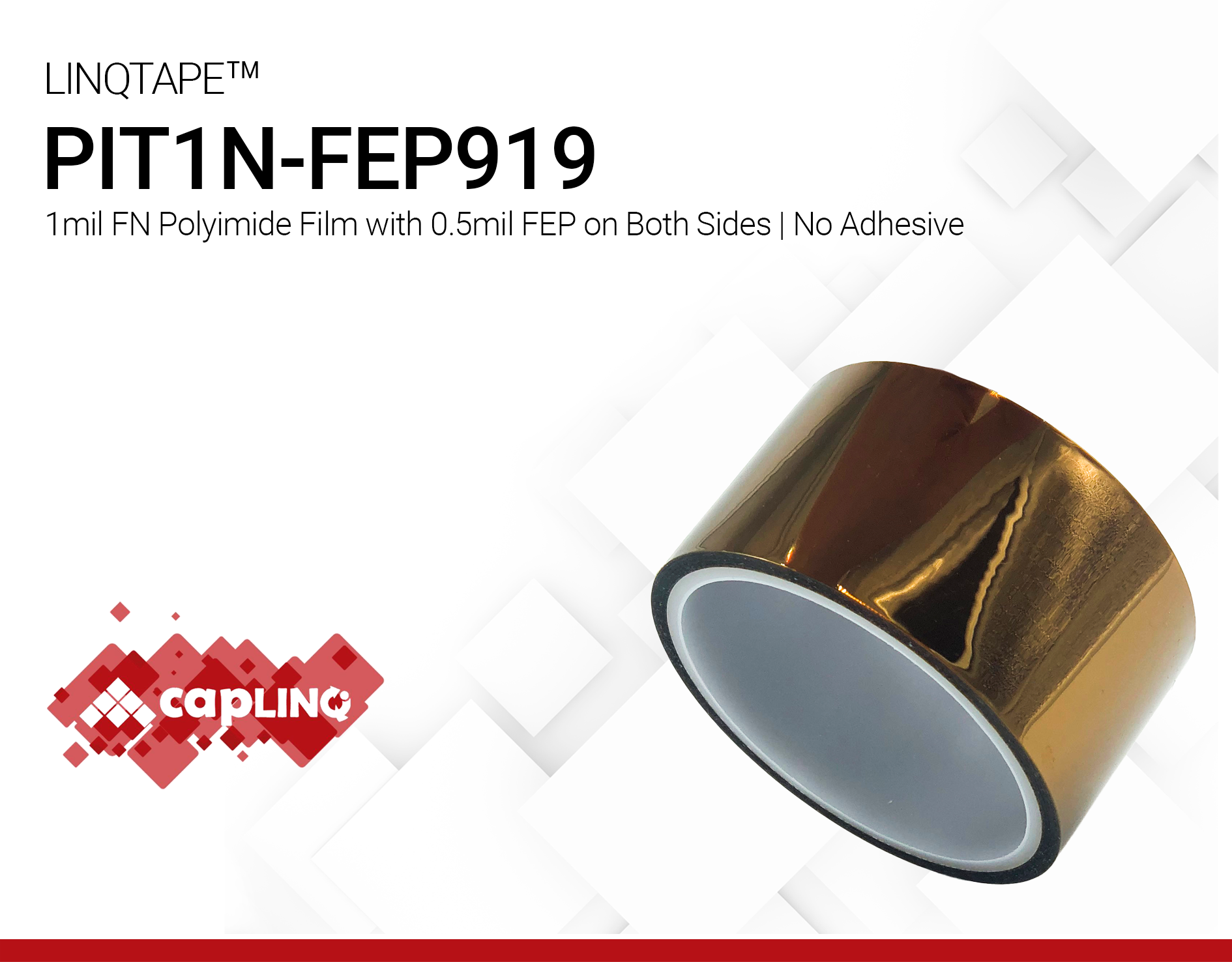

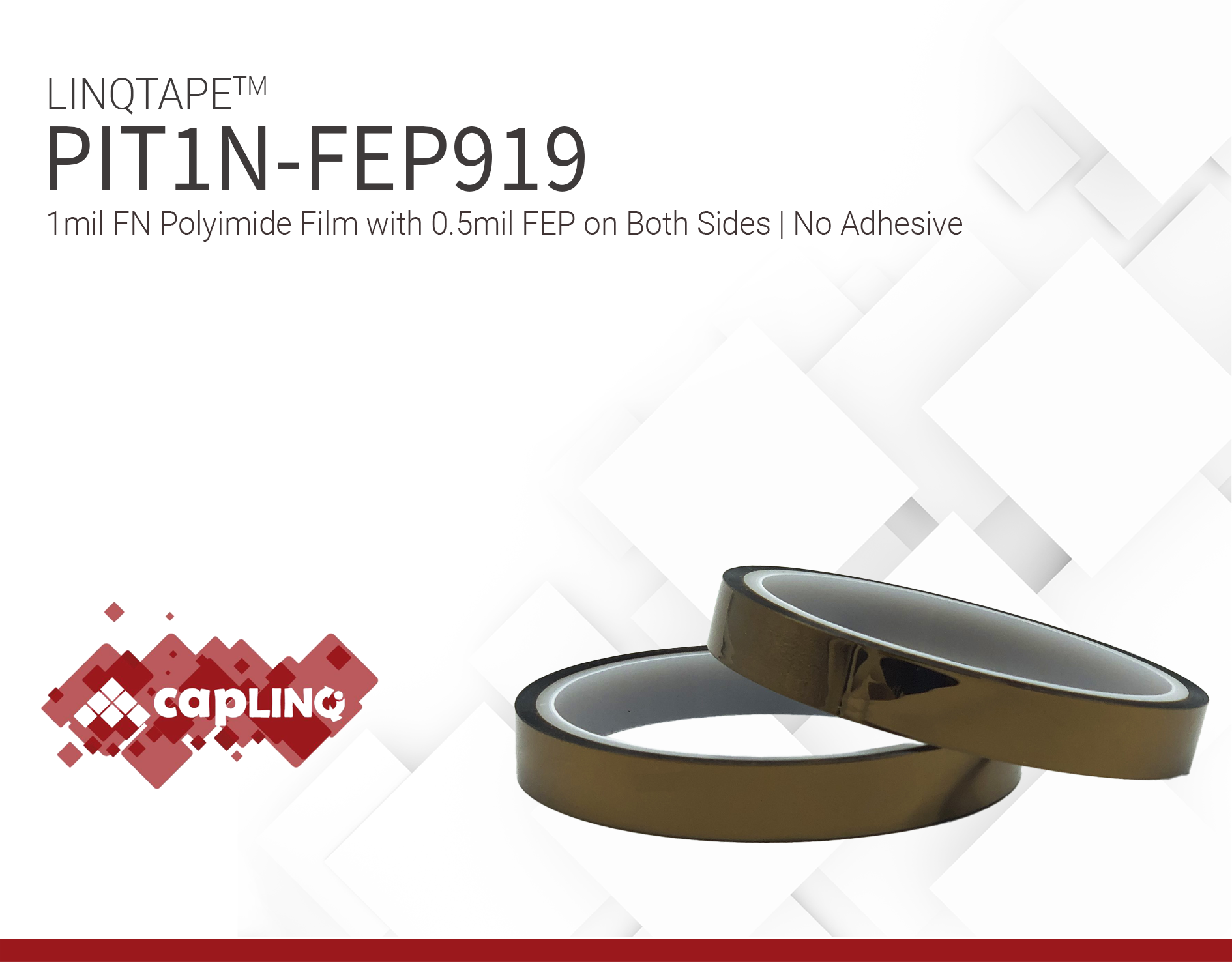

PIT1N-FEP919 | 1mil FN Polyimide Film with 0.5mil FEP on Both Sides | No Adhesive
- 1 mil polyimide film
- No adhesive
- Double Sided FEP
Product Description

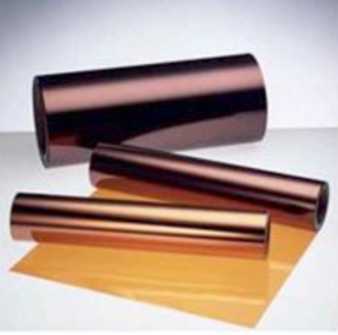

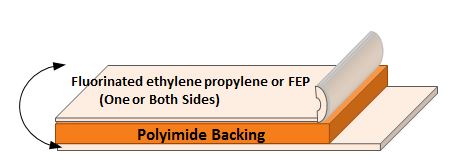

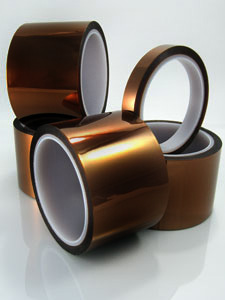

LINQTAPE™ PIT1N-FEP919 Series is a general purpose, high-temperature resistant HN polyimide film that is coated on both sides with a 0.5 mil fluorinated ethylene propylene or FEP copolymer.
LINQTAPE™ PIT1N-FEP919 Series is coated with an FEP fluoropolymer coating (F46) emulsified solution and sintered at high temperature to turn general purpose HN polyimide into an FN polyimide. By applying the FEP coating to the HN polyimide film, it is converted to a heat bondable film, which in turn provides a superior moisture barrier and improved chemical resistance.
Technical Specifications
| General Properties | |
| Adhesive Layer Adhesive Layer A layer that is applied to one surface or both to bind items together and resist their separation | None |
| Chemistry Type | Polyimide |
| Film Thickness Film Thickness Film thickness is the thickness of a backing film without taking into account any coatings or adhesive layers. It is measured in micron and the conversion factor to mil is 0.039. | 25.4 µm |
| Special Layer | Double-Sided FEP |
| Thermal Properties | |
| Temperature Resistance Temperature Resistance Temperature resistance is the maximum temperature that the material or product can withstand for a period of time. The temperatures listed should be considered as guidelines for an operating temperature of about 30 minutes. Typically, the material can withstand much longer times at temperatures about 20°C lower and can withstand much higher temperatures for short, intermittent times. | 260 ˚C |
| Other Properties | |
| RoHS Compliant RoHS Compliant RoHS is a product level compliance based on a European Union Directive which restricts the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS). Products compliant with this directive do not exceed the allowable amounts of the following restricted materials: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE), with some limited exemptions | Yes |
