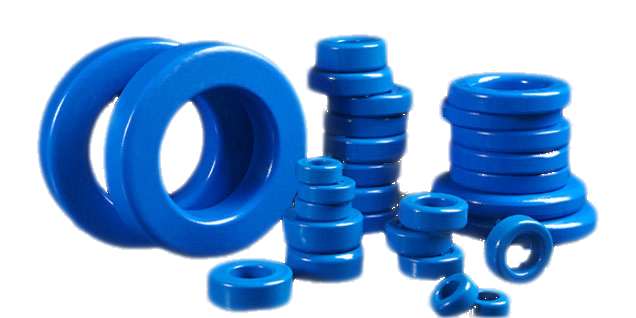

DK18-05 Blue Insulating Epoxy Coating Powder
- DK18-05 Coating Powder
- Blue,insulating, epoxy based
- For class 2 & 3 capacitors and varistors
Product Description
DK18-05 Blue is a medium-performance, epoxy coating powder developed for Class 2 & 3 capacitors and varistors. DK18-05 has excellent pickup and curing at temperatures as low as 110°C, making it excellent for tantalum capacitors and other temperature-sensitive devices.
DK18-05 has a proven track record, is recognized with a UL 94 V-0 flammability rating, and is available in a wide range of colors.
Main Applications

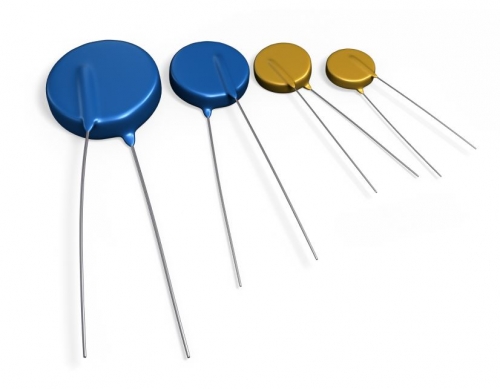

- Class 2 & Class 3 Ceramic Capacitors and Varsitors
- Tantalum and Niobium Capacitors
- Thermal Fuses
Product Features & Benefits:
- Wide process window and versatile properties
- Even better pickup and cure speed at higher temperatures
- Laser markable
- DK18-05 is available in a range of colors, including blue, gold, green and black
This product is no longer available from CAPLINQ. An alternative for class 2 & 3 capacitors and varistors is: GCP-1805 - Halogen-free Insulating Epoxy Coating Powder
Technical Specifications
| General Properties | |||||||
| Chemistry Type | Epoxy | ||||||
| Color Color The color | Blue | ||||||
| Density (g) | 0.74/0.67 g/cm3 | ||||||
| Process Method | Epoxy Coating Powders | ||||||
| Specific Gravity Specific Gravity Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume. For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless. | 1.75 | ||||||
| |||||||
| |||||||
| Electrical Properties | |||||||
| Cut Through Temperature Cut Through Temperature the thermal resistance temperature/ durability | 345 °C | ||||||
| Dielectric Strength Dielectric Strength Dielectric strength is measured in kV per mm and is calculated by the Breakdown voltage divided by the thickness of the tested material. Those two properties go hand in hand and while Breakdown voltage is always thickness dependent, dielectric strength is a general material property. As an example, the dielectric strength of Polyimide is 236 kV/mm. If we place 1mm of Polyimide between two electrodes, it will act as an insulator until the voltage between the electrodes reaches 236 kV. At this point it will start acting as a good conductor, causing sparks, potential punctures and current flow. | 1010 kV/mm | ||||||
| Mechanical Properties | |||||||
| Edge Coverage | 40 % | ||||||
| Thermal Properties | |||||||
| |||||||
| Glass Plate Flow Glass Plate Flow Glass plate flow determines the flow distance of thermosetting epoxies, resins or coating powders on a smooth inclined glass surface in a certain time and temperature. This value is the distance in millimetres from the upper point of the original position of the pellet to the point of extreme flow. Typically measured at 150°C but please check the TDS for more info | 22/20 mm | ||||||
| UL 94 Rating UL 94 Rating Flammability rating classification. It determines how fast a material burns or extinguishes once it is ignited. HB: slow burning on a horizontal specimen; burning rate less than 76 mm/min for thickness less than 3 mm or burning stops before 100 mm V-2: burning stops within 30 seconds on a vertical specimen; drips of flaming particles are allowed. V-1: burning stops within 30 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed. V-0: burning stops within 10 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed. 5VB: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may develop a hole. 5VA: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may not develop a hole | Class B (130°C) | ||||||
| Other Properties | |||||||
| Certifications Certifications Confirmation of tested functions, characteristics of a product. | ESF-M3L72-A | ||||||
| RoHS Compliant RoHS Compliant RoHS is a product level compliance based on a European Union Directive which restricts the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS). Products compliant with this directive do not exceed the allowable amounts of the following restricted materials: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE), with some limited exemptions | Yes | ||||||
| Special Properties | Gasohol Resistant | ||||||
Additional Information
Pricing & Availability
Pricing and Volume Price Breaks for DK18-05 Blue Insulating Epoxy Coating Powder are available by contacting us. You cannot order this product directly online. CAPLINQ lists all its prices without taxes, shipping payment charges or discounts. CAPLINQ has warehouses and ships from both Canada and the Netherlands, and if your shipping address is one of these two countries, applicable taxes will be applied. If your shipping address is to the United States, we request your company’s Employer Identification Number (EIN) or Tax Identification Number (TIN). This is a unique 9-digit number assigned by the IRS and is required for all cross-border shipments. Failure to provide this number could result in delays to your order. If your shipping address is within the EU, but outside the Netherlands, then we are required to request your company's Value Added Tax (VAT, BTW, MwSt) number to be able to ship the goods tax-free. For all other countries, no taxes are levied on your orders. Minimum Order Quantity for DK18-05 Blue Insulating Epoxy Coating PowderThe minimum order quantity for this package size is (s). Shipping Charges for DK18-05 Blue Insulating Epoxy Coating PowderAll prices shown are ex-works CAPLINQ, but during the checkout process, you will be given several shipping options including Canada Post, TNT, UPS or the choice of using your own freight forwarder. Depending on your shipping address, the shipping charges will be calculated as follows:
Payment option for DK18-05 Blue Insulating Epoxy Coating PowderDuring the checkout process, you will be presented with several payment options including:
Availability for DK18-05 Blue Insulating Epoxy Coating PowderTo the right of the product is a small icon that lets you know the availability and leadtime of the product. This leadtime is the time to ship the product and delivery times vary based on the method of delivery you select at the time you place your order. Contact us if anything is unclear or you need more assistance. |
Technical Specifications
Technical Datasheets for DK18-05 Blue Insulating Epoxy Coating PowderTDS (English) |
Competitive Crossovers
#shortdescPlease see the section above for a list of Competitive Brands that DK18-05 Blue Insulating Epoxy Coating Powder competes against. |
Videos & Other Media
Please visit or subscribe to our YouTube Channel. See this video that shows the difference between a good and a bad fluidized epoxy coating powder bed. |
