LINQBOND DA-8030 | Die-Attach

Main features

Good electrical and thermal conductivity
Excellent adhesion
Outstanding manufacturability with low temperature cure

Product Description

LINQBOND DA-8030 is a single-component, silver-filled, electrically conductive die attach adhesive. It is engineered to provide exceptional thermal and electrical conductivity, ensuring efficient heat dissipation and reliable electrical connections. Its excellent adhesion properties allow for secure bonding to various substrates, such as metal and ceramic. Additionally, the modified epoxy's low-temperature curing capability minimizes thermal stress on components.

LINQBOND DA-8030 is designed as a die attach for thin packages such as memory cards, CCD and CMOS assemblies. It can also be used for other applications such as consumer electronics, automotive sensors, and diodes.

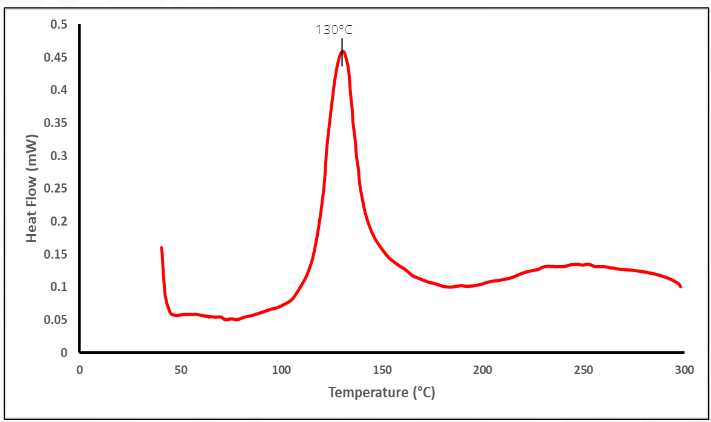

Cure Schedule

60 minutes at 120°C

Specifications
Additional Information

Technical Specifications

General Properties

Work life @25°C

Work life @25°C
Work life is the amount of time we have to work with a material until it is no longer able to be easily worked and applied on a substrate.

It is based on the change in viscosity and it can rely on the application requirements.

24 hours

Physical Properties

Viscosity

Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application

20,700 mPa.s

Mechanical Properties

Shear strength
Shear Strength @25°C	16 N/mm2

Electrical Properties

Volume Resistivity

Volume Resistivity
Volume resistivity, also called volume resistance, bulk resistance or bulk resistivity is a thickness dependent measurement of the resistivity of a material perpendicular to the plane of the surface.

1.3x10¹ Ohms⋅cm
