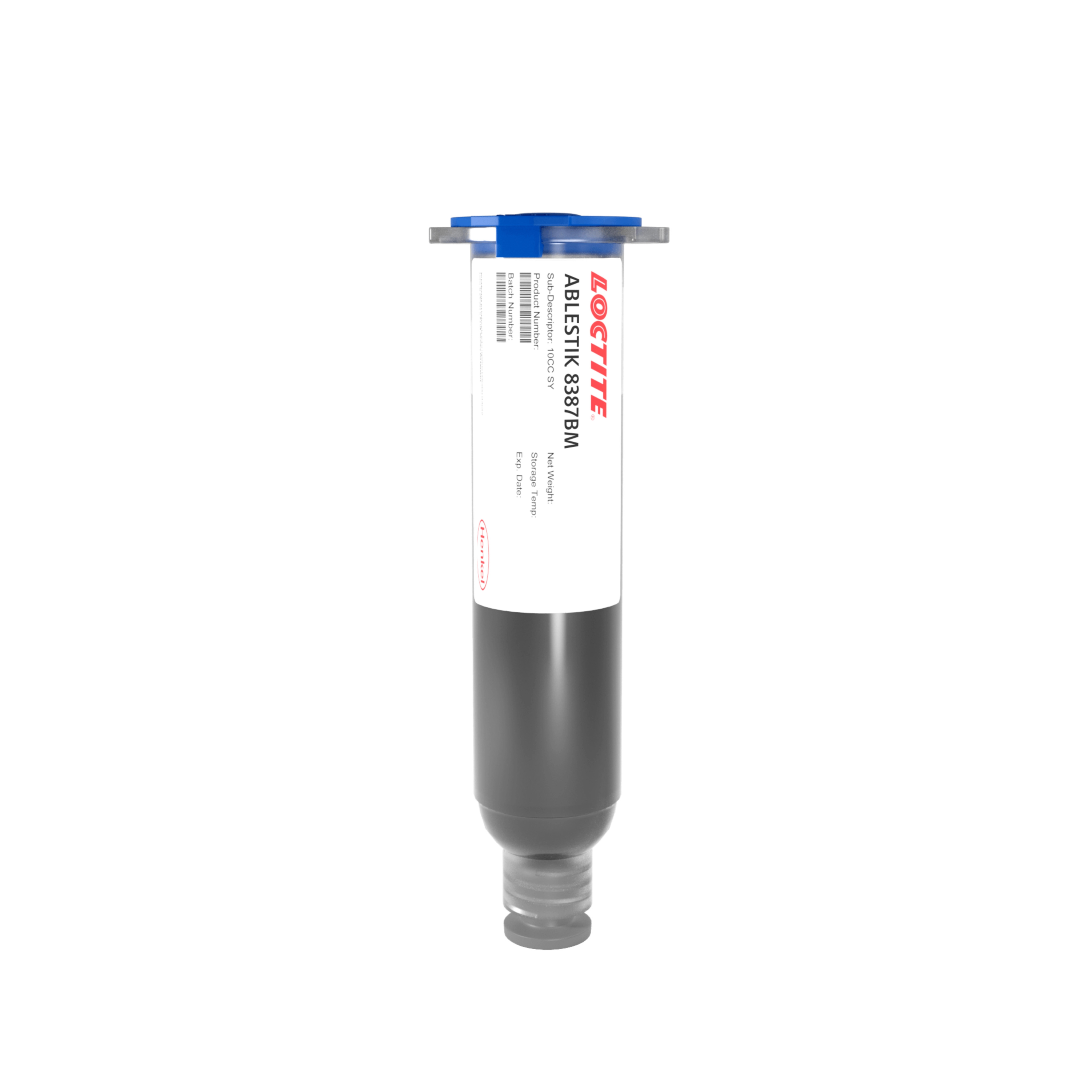

LOCTITE ABLESTIK 8387BM

Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg

Main features

Fast cure
2 in 1
Die attach and Glob top

Product Description

LOCTITE® ABLESTIK 8387BΜ non conductive epoxy die attach adhesive has been formulated for use in high throughput die attach applications. It has been used for the glass attach of Optical and 3D sensors and has been successfully used for lid attach in aerospace and defence applications. This non conductive adhesive can be used as an encapsulant and has black pigmentation for blocking stray light. It can be used to bond Nickel-plated surfaces on FR4.

LOCTITE® ABLESTIK 8387BΜ is a low temperature cure material that has the unique ability to be a 2 in 1 solution for both die attach and glob top encapsulation applications.

Cure Schedule

1 hour @ 100°C
90 minutes @ 90°C

Specifications

Technical Specifications

General Properties

Shelf Life Shelf Life Shelf life is the amount of time after manufacturing that a product is guaranteed to retain its properties. It differs vastly per product and it is based on temperature and storage conditions. The properties can be guaranteed for the temperature and time range indicated on the TDS since those are the ones tested to be the best for the product.
Shelf Life @ -40°C	365 days

Work life @25°C

Work life @25°C
Work life is the amount of time we have to work with a material until it is no longer able to be easily worked and applied on a substrate.

It is based on the change in viscosity and it can rely on the application requirements.

48 hours

Physical Properties

Thixotropic index

Thixotropic index
Thixotropic Index is a ratio of a material s viscosity at two different speeds in Ambient temperature, generally different by a factor of ten.

A thixotropic material s viscosity will decrease as agitation or pressure is increased. It indicates the capability of a material to hold its shape. Mayonnaise is a great example of this. It holds its shape very well, but when a shear stress is applied, the material easily spreads.

It helps in choosing a material in accordance to the application, dispense method and viscosity of a material.

4,5

Viscosity

Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application

9,200 mPa.s

Chemical Properties

Ionic Content
Chloride (Cl-) Chloride (Cl-) The amount of Chloride (Cl-) ion extracted from the product in parts per million (ppm)	50 ppm
Potassium (K+) Potassium (K+) The amount of Potassium (K+) ion extracted from the product in parts per million (ppm)	10 ppm
Sodium (Na+) Sodium (Na+) The amount of Sodium (Na+) ion extracted from the product in parts per million (ppm)	10 ppm

Mechanical Properties

Tensile Modulus Tensile Modulus Tensile modulus is a mechanical property that measures the stiffness of an elastic material. It is the slope of stress / strain curve of a material under direct tensile loading. It can be used to predict the elongation or elastic deformation of an object as long as the stress is less than the tensile strength of the material. Elastic deformation is caused by stretching the bonds between atoms and the deformation can be reversed when the load is removed. Tensile modulus is affected by temperature and is an important engineering attribute since we generally want to keep elastic deformation as small as possible.
Tensile Modulus @-65°C	3,259 N/mm2
Tensile Modulus @150°C	118 N/mm2
Tensile Modulus @200°C	87 N/mm2
Tensile Modulus @25°C	1,919 N/mm2
Tensile Modulus @250°C	75 N/mm2

Thermal Properties

Glass Transition Temperature (Tg)

Glass Transition Temperature (Tg)
The glass transition temperature for organic adhesives is a temperature region where the polymers change from glassy and brittle to soft and rubbery. Increasing the temperature further continues the softening process as the viscosity drops too. Temperatures between the glass transition temperature and below the decomposition point of the adhesive are the best region for bonding.

The glass-transition temperature Tg of a material characterizes the range of temperatures over which this glass transition occurs.

122 °C
