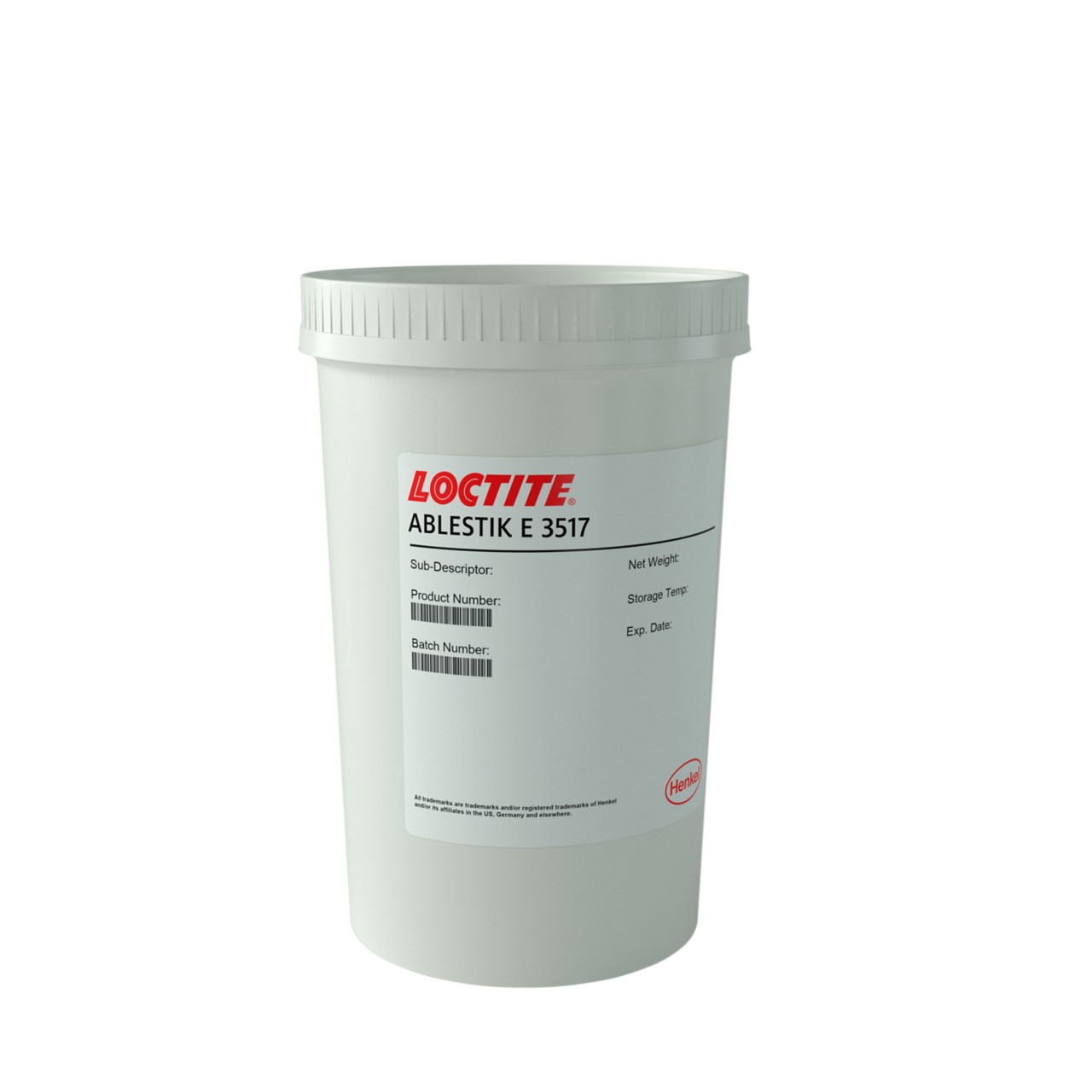

LOCTITE ABLESTIK E3517

Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other

Main features

Sealant
Low viscosity
High resistance to heat

Product Description

LOCTITE ABLESTIK E 3517 is an electrically conductive epoxy that is used in applications where a low electrical conductive sealant is required.

LOCTITE ABLESTIK E 3517 offers low viscosity and good dispense and flow behavior while also displaying high resistance to heat and humidity and a good bond strength. This graphite filled products is typically used as a sealant.

Cure Schedule

2 hours @ 120°C or
1 hour @ 150°C

Specifications

Technical Specifications

General Properties
Pot Life Pot Life Pot life is the amount of time it takes for the viscosity of a material to double (or quadruple for lower viscosity materials) in room temperature after a material is mixed. It is closely related to work life but it is not application dependent, less precise and more of a general indication of how fast a system is going to cure.	120 hours
Physical Properties
Viscosity Viscosity Viscosity is a measurement of a fluid’s resistance to flow. Viscosity is commonly measured in centiPoise (cP). One cP is defined as the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP. A product like honey would have a much higher viscosity -around 10,000 cPs- compared to water. As a result, honey would flow much slower out of a tipped glass than water would. The viscosity of a material can be decreased with an increase in temperature in order to better suit an application	3,000 mPa.s
Electrical Properties
Volume Resistivity Volume Resistivity Volume resistivity, also called volume resistance, bulk resistance or bulk resistivity is a thickness dependent measurement of the resistivity of a material perpendicular to the plane of the surface.	3.0x10⁴ Ohms⋅cm
