LOCTITE ABLESTIK EMI 3620FA


Main features
  • Compartment EMI Shielding
  • No popcorning and delamination
  • For gap, hole and trench filling

Product Description

LOCTITE ABLESTIK EMI 3620FA is an electrically conductive adhesive designed for hole, gap or trench filling and for compartment EMI shielding. A package or device manufactured with LOCTITE ABLESTIK EMI 3620FA will exhibit good resistance to delamination and "popcorning" after multiple reflow temperature exposures during reliability testing.

LOCTITE ABLESTIK EMI 3620FA is a solvent free, low viscosity and low outgassing product that is compatible for use with G30 nozzle. This product can be easily applied by dispensing or jetting and is typically used in Sip or newly designed advanced packaging applications.

Cure Schedule

  • 30 mins ramp to 175°C, hold for 60 mins @ 175 °C
  • 30 mins ramp to 150°C, hold 60 mins @ 150 °C
Product Family
EMI3620FA

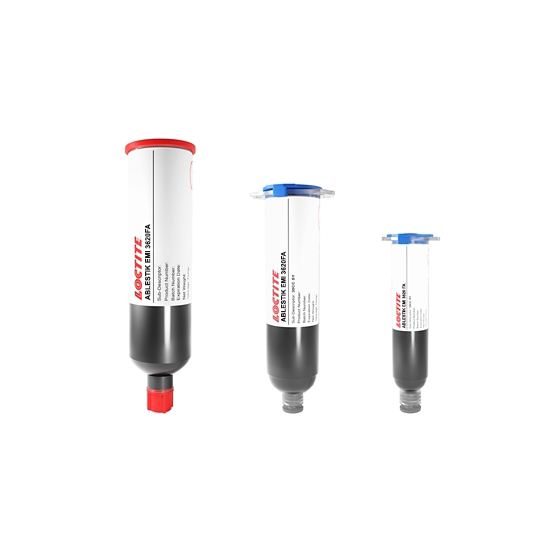

4cc in 10cc Syringe

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 - 12 weeks Shipping in 8 - 12 weeks Shipping in 8 - 12 weeks
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Shelf Life
Shelf Life
Shelf life is the amount of time after manufacturing that a product is guaranteed to retain its properties.

It differs vastly per product and it is based on temperature and storage conditions.

The properties can be guaranteed for the temperature and time range indicated on the TDS since those are the ones tested to be the best for the product.
Shelf Life @ -40°C 365 days
Work life @25°C
Work life @25°C
Work life is the amount of time we have to work with a material until it is no longer able to be easily worked and applied on a substrate.

It is based on the change in viscosity and it can rely on the application requirements.
 8 hours
Physical Properties
Thixotropic index
Thixotropic index
Thixotropic Index is a ratio of a material s viscosity at two different speeds in Ambient temperature, generally different by a factor of ten.

A thixotropic material s viscosity will decrease as agitation or pressure is increased. It indicates the capability of a material to hold its shape. Mayonnaise is a great example of this. It holds its shape very well, but when a shear stress is applied, the material easily spreads.

It helps in choosing a material in accordance to the application, dispense method and viscosity of a material.
 1.7
Viscosity
Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application
 5,000 mPa.s
Mechanical Properties
Storage (DMA) Modulus
Storage (DMA) Modulus @ 25°C 4,173 N/mm2
Electrical Properties
Volume Resistivity
Volume Resistivity
Volume resistivity, also called volume resistance, bulk resistance or bulk resistivity is a thickness dependent measurement of the resistivity of a material perpendicular to the plane of the surface.
 9.0x10-5 Ohms⋅cm
Thermal Properties
Glass Transition Temperature (Tg)
Glass Transition Temperature (Tg)
The glass transition temperature for organic adhesives is a temperature region where the polymers change from glassy and brittle to soft and rubbery. Increasing the temperature further continues the softening process as the viscosity drops too. Temperatures between the glass transition temperature and below the decomposition point of the adhesive are the best region for bonding.

The glass-transition temperature Tg of a material characterizes the range of temperatures over which this glass transition occurs.
 135 °C
