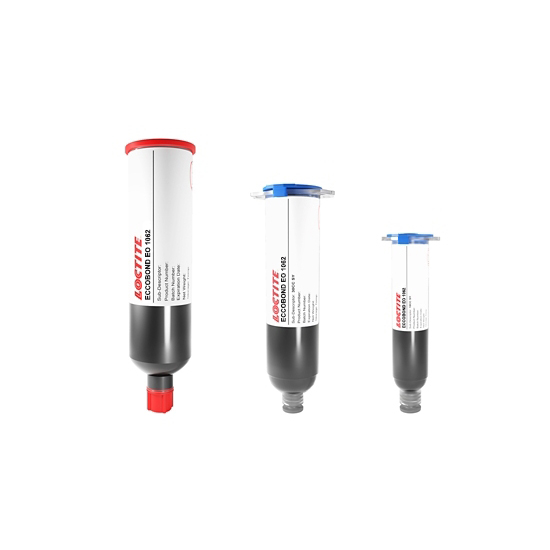

LOCTITE ECCOBOND EO1062

Harmonization Code : 3907.30.00.90 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other

Main features

Low flow
Non conductive
Excellent reliability

Product Description

LOCTITE ECCOBOND EO 1062 is designed to pass 1,000 hours of temperature/humidity/bias testing and thermal cycling up to 125°C. Exceptional viscosity stability at 25°C provides easier control of shot size using conventional time/pressure dispensing equipment.

Cure Schedule

4 to 6 hours @ 125°C - Robust non-stress sensitive components
3 hours @ 140°C. - Stress sensitive components

Specifications

Technical Specifications

General Properties

Pot Life

Pot Life
Pot life is the amount of time it takes for the viscosity of a material to double (or quadruple for lower viscosity materials) in room temperature after a material is mixed.

It is closely related to work life but it is not application dependent, less precise and more of a general indication of how fast a system is going to cure.

600 hours

Specific Gravity

Specific Gravity
Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume.

For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless.

1.78

Shelf Life Shelf Life Shelf life is the amount of time after manufacturing that a product is guaranteed to retain its properties. It differs vastly per product and it is based on temperature and storage conditions. The properties can be guaranteed for the temperature and time range indicated on the TDS since those are the ones tested to be the best for the product.
Shelf Life @ -40°C	365 days

Physical Properties

Viscosity

Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application

64,000 mPa.s

Chemical Properties

Ionic Content
Chloride (Cl-) Chloride (Cl-) The amount of Chloride (Cl-) ion extracted from the product in parts per million (ppm)	70 ppm
Potassium (K+) Potassium (K+) The amount of Potassium (K+) ion extracted from the product in parts per million (ppm)	20 ppm
Sodium (Na+) Sodium (Na+) The amount of Sodium (Na+) ion extracted from the product in parts per million (ppm)	20 ppm

Electrical Properties

Dielectric Constant

Dielectric Constant
Dielectric Constant (k), commonly known as relative permittivity, is a number relating the ability of a material to carry alternating current to the ability of vacuum to carry alternating current.

It determines the ability of an insulator to store electrical energy and is the ratio of electric permeability in vacuum against the electric permeability of a material.

The lower the dielectric constant (κ) and dissipation factor, the less energy is absorbed from an electric field, making it a much better insulator.

It is a dimensionless property that can be affected by various factors such as the thickness uniformity of a material, insufficient contact between the sample and electrodes, water adsorption and contact resistance.

Dielectric Constant @ 25 ˚C/1000 kHz

4.97

Volume Resistivity

Volume Resistivity
Volume resistivity, also called volume resistance, bulk resistance or bulk resistivity is a thickness dependent measurement of the resistivity of a material perpendicular to the plane of the surface.

1.9x10⁰ Ohms⋅cm

Thermal Properties

Coefficient of Thermal Expansion (CTE)

Coefficient of Thermal Expansion (CTE)
CTE (Coefficient of thermal expansion) is a material property that is indicative of the extent to which a material expands with a change in temperature. This can be a change in length, area or volume, depending on the material.

Knowing the CTE of the layers is helpful in analyzing stresses that might occur when a
system consists of an adhesive plus some other solid component.

Coefficient of Thermal Expansion (CTE), α1

Coefficient of Thermal Expansion (CTE), α1
CTE α1 (alpha 1) is the slope of the Coefficient of thermal expansion in a temperature range below the Glass transition temperature (Tg).

It explains how much a material will expand until it reaches Tg.

40 ppm/°C

Glass Transition Temperature (Tg)

Glass Transition Temperature (Tg)
The glass transition temperature for organic adhesives is a temperature region where the polymers change from glassy and brittle to soft and rubbery. Increasing the temperature further continues the softening process as the viscosity drops too. Temperatures between the glass transition temperature and below the decomposition point of the adhesive are the best region for bonding.

The glass-transition temperature Tg of a material characterizes the range of temperatures over which this glass transition occurs.

125 °C
