LOCTITE ECCOBOND UV9052

Harmonization Code : 3907.30.00.90 |   Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
  • UV & Moisture Cure
  • Cures in shadowed areas
  • No stringing

Product Description

LOCTITE ECCOBOND UV 9052 is a single component, UV light/moisture curable adhesive for ink jet applications. It is a translucent light blue acrylate that cures in 5 to 10 seconds and can withstand exposure to ink.

LOCTITE ECCOBOND UV 9052 cures in shadowed areas without exhibiting stringing and can be dispensed with pneumatic or positive displacement dispensers. Ideal for Ink jet applications and can be used on a variety of substrates including silicon ans plastics.



UV Cure

Medium pressure mercury vapor lamp  (Doped UV Lamp)

  • Lamp Power, Joule 0.5 to 1
  • Recommended Dose, seconds 5 to 10
  • Depth of cure, mils >125

Moisture cures occurs at ambient temperature and humidity.

Product Family
UV9052

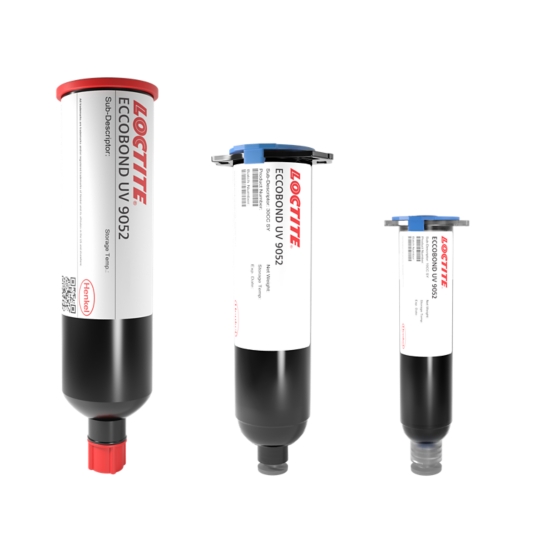

30cc Syringe

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 - 12 weeks Shipping in 8 - 12 weeks Shipping in 8 - 12 weeks
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Shelf Life
Shelf Life
Shelf life is the amount of time after manufacturing that a product is guaranteed to retain its properties.

It differs vastly per product and it is based on temperature and storage conditions.

The properties can be guaranteed for the temperature and time range indicated on the TDS since those are the ones tested to be the best for the product.
Shelf Life @ -20°C 91 days
Physical Properties
Thixotropic index
Thixotropic index
Thixotropic Index is a ratio of a material s viscosity at two different speeds in Ambient temperature, generally different by a factor of ten.

A thixotropic material s viscosity will decrease as agitation or pressure is increased. It indicates the capability of a material to hold its shape. Mayonnaise is a great example of this. It holds its shape very well, but when a shear stress is applied, the material easily spreads.

It helps in choosing a material in accordance to the application, dispense method and viscosity of a material.
 6
Viscosity
Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application
 41,000 mPa.s
Mechanical Properties
Hardness
Hardness
Hardness is a dimensionless quantity. There is no direct relationship between measurements in one scale and their equivalent in another scale or another hardness test.
Durometer (Shore A) 40
