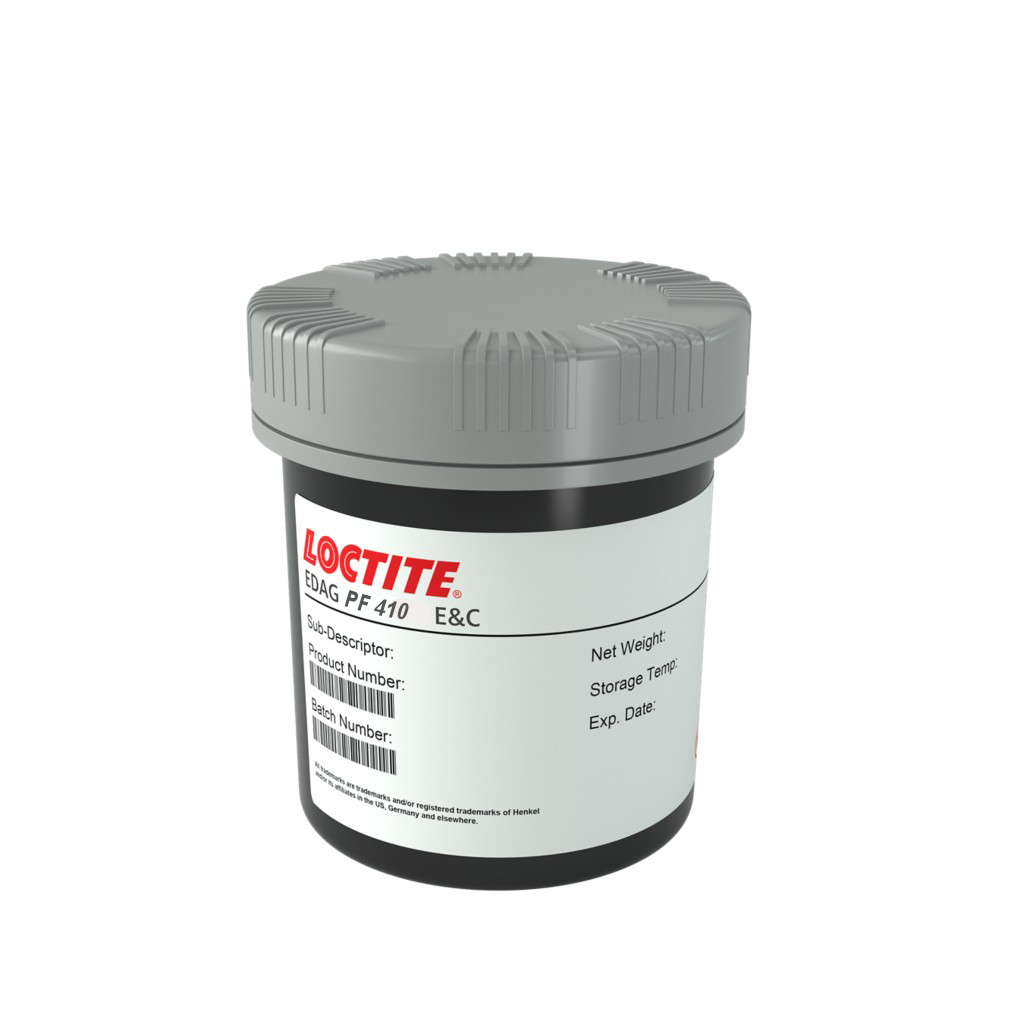

LOCTITE EDAG PF 410 E&C

Harmonization Code : 3506.91.90.99 |   Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
  • Screen printable
  • Excellent print definition
  • Silver filled

Product Description

LOCTITE EDAG PF 410 E&C is designed for production of flexible circuitry. This material can be used on a variety of substrates and is applicable with manual, semi automatic or high speed reel to reel screen printing equipment.

LOCTITE EDAG PF 410 E&C is passed over a triple roll mill to remove small particles. It offers extended screen residence time and excellent print definition with superior adhesion to polyester film.

Drying Cycle

  • 30 minutes @ 80°C or
  • 15 minutes @ 120°C

LOCTITE EDAG PF 410 E&C can be dried immediately after printing at temperatures between 80 to 140°C

Product Family
PF410
0.4Kg Jar 1.5Kg Jar

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 - 12 weeks Shipping in 8 - 12 weeks Shipping in 8 - 12 weeks
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Solids 75 %
Physical Properties
Viscosity
Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application
 17,500 mPa.s

Additional Information

Optimal Storage : 5 to 30 °C

TYPICAL SCREEN PRINTING PROCESS
Recommended Thickness
-Applied dry coating thickness , μm 8 to 12


Emulsion Thickness
-Emulsion Thickness , μm 20 to 40

Recommended Squeegee
-Polyurethane , durometer 70 to 75

Recommended Screen Type
-Monofilament polyester screen, threads/cm 68 to 110
-Stainless steel screen , threads/cm 90 to 154

Printing Equipment Type
-Manual
-Semi-automatic
-High speed reel-to-reel
