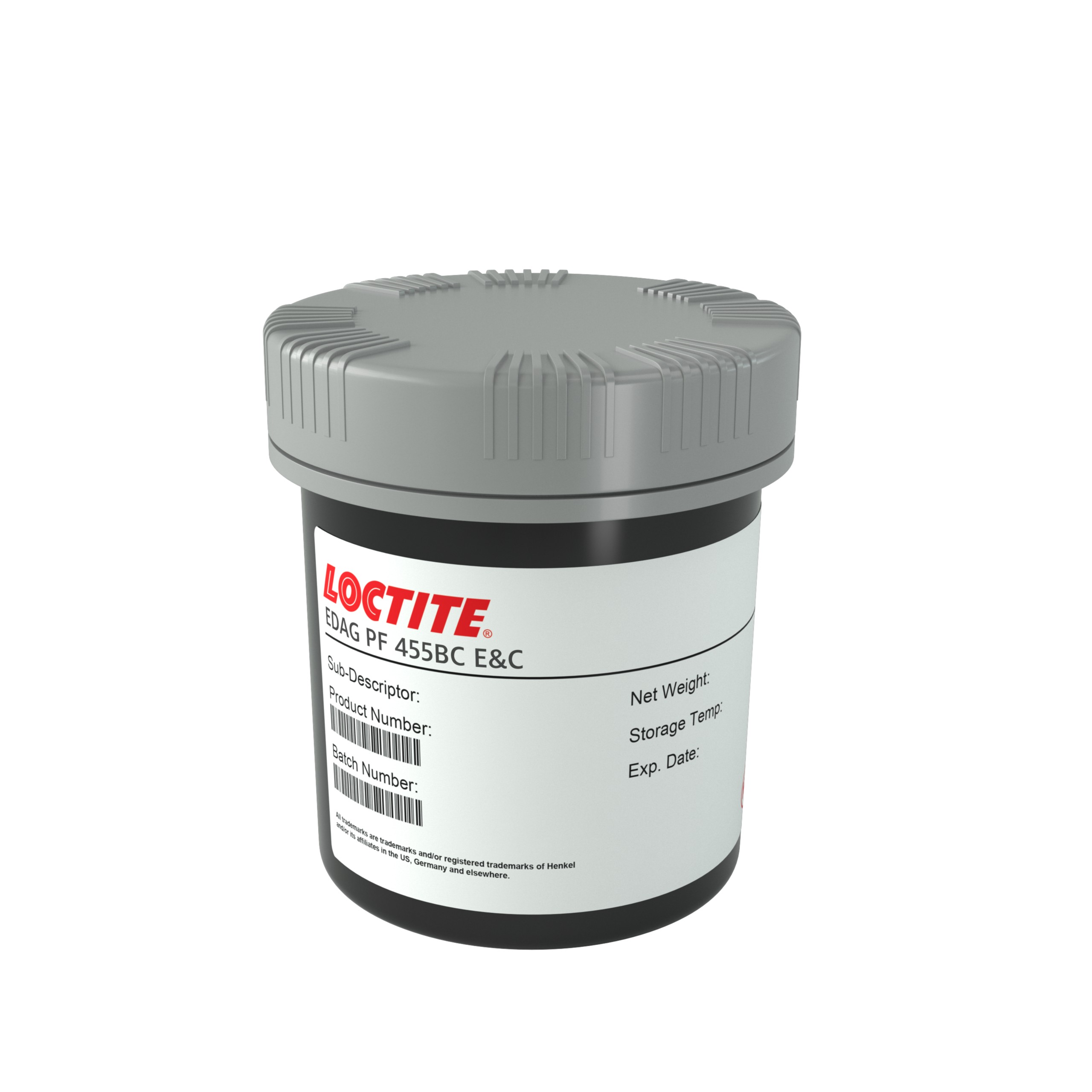

LOCTITE EDAG PF 455BC E&C

Harmonization Code : 3506.91.90.99 |   Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
  • Good dielectric strength
  • Excellent printability
  • Fast UV Cure

Product Description

LOCTITE EDAG PF 455BC E&C is a translucent UV curable acrylate that is formulated as a crossover dielectric and is compatible with other EDAG E&C inks. Mainly used as a dielectric ink.

LOCTITE EDAG PF 455BC is resistant to humidity, has excellent printability and adheres well to both treated and untreated polyester film substrates.  It has good dielectric strength and is compatible for use with ElectroDAG conductive and dielectric polymer thick film inks.

UV Cure

  • UV lamp 80Watt/cm or
  • UV lamp 120Watt/cm
Product Family
PF455BC
1Kg Jar

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 - 12 weeks Shipping in 8 - 12 weeks Shipping in 8 - 12 weeks
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Density (g) 1,02 g/cm3
Shelf Life
Shelf Life
Shelf life is the amount of time after manufacturing that a product is guaranteed to retain its properties.

It differs vastly per product and it is based on temperature and storage conditions.

The properties can be guaranteed for the temperature and time range indicated on the TDS since those are the ones tested to be the best for the product.
Shelf Life @ 25°C 730 days
Physical Properties
Viscosity
Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application
 13,500 mPa.s

Additional Information

Recommended UV Cure Condition
UV lamp 80Watt/cm or
UV lamp 120Watt/cm
When applying LOCTITE EDAG PF 455BC E&C as a crossover, two layers of approximately 12 to 15μm each should be applied. Cure both layers at an energy level of 0.5Joule/cm2 to obtain a good inter- coat adhesion between the first and second layer and to obtain a maximum adhesion of the crossover.
When using LOCTITE EDAG PF 455BC E&C as a crossover, be sure to dry the inks printed over it within 5 minutes. Do not let the inks printed over LOCTITE EDAG PF 455BC E&C air dry for extended periods of time.
