Tempmate-B3 | Mini Temperature Data Logger

Harmonization Code : 9025.19.00.90 |   Hydrometers and similar floating instruments, thermometers, pyrometers, barometers, hygrometers and psychrometers, recording or not, and any combination of these instruments; Other ; Other
Main features
  • 0°C to +125°C
  • Multi Use - Robust, mini logger
  • TempIT software report

Product Description

Mini temperature data logger

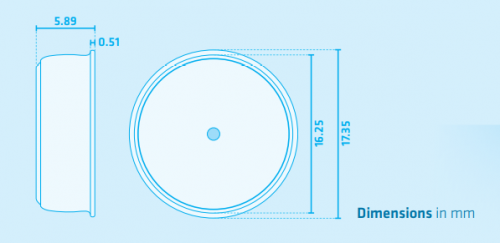

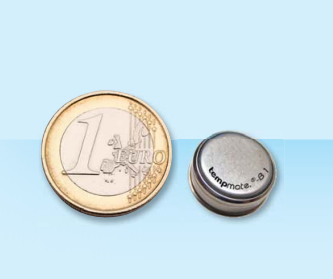

The tempmate.®-B3 mini data loggers can record up to 8,192 temperature measurements. The temperature range spans 0°C to +125°C, with an accuracy rate of up to ±0.5°C. Thanks to its extremely compact construction (about the size of a watch battery), the logger is extremely versatile.

Programming and analysis

The logger is connected to the PC via the separately available USB adapter, and is programmed, read and analysed with the aid of the user-friendly TempIT software. The TempIT-Lite software offers a graphical display and can be downloaded here, free of charge. For more comprehensive analysis, including table view, data export function (for example Excel or Word), MKT, F0, A0 and PU calculations, there is the TempIT-Pro version, which is also available with optional copy protect dongle. It is possible to upgrade from TempIT-Lite to TempIT-Pro at any time.

Accessories

The mini data loggers in the tempmate.®-Bx range are complemented by a USB adapter that can be connected to any PC to read and analyze the data.

Product Family
Tempmate-B3-Series
Standard

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 4 - 6 weeks Shipping in 4 - 6 weeks Shipping in 1 - 2 weeks
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Auto CSV Generation
Auto CSV Generation
CSV (comma-separated values) is a simple data file for spreadsheet software.
 No
Auto PDF Generation
Auto PDF Generation
PDF (Portable Document Format) will convert a generated document into a pdf file
 No
Battery Included Yes
Battery Type
Battery Type
Specific types of battery that can vary from Nickel Cadmium, Nickel-Metal Hydride, Lead Acid Battery, Lithium Ion battery and more.
 Non-replaceable 3.0 V lithium battery
Color
Color
The color
 Silver
Connection Interface
Connection Interface
Is an interface between two pieces of equipments that functions such as passing messages, connecting and disconnecting, etc.
 USB connector
Data Storage Capacity
Data Storage Capacity
The amount of readings that can be stored in the device
 8192 readings
Number of Uses Multi-Use
Recording Cycle Set through software days
Recording Interval 0.03 - 1,440 min
Reprogrammable Yes
Software TempIT-Lite
Startup Mode Software
Stop Mode Software
Shelf Life
Shelf Life
Shelf life is the amount of time after manufacturing that a product is guaranteed to retain its properties.

It differs vastly per product and it is based on temperature and storage conditions.

The properties can be guaranteed for the temperature and time range indicated on the TDS since those are the ones tested to be the best for the product.
Shelf Life @ 15°C 60 months
Thermal Properties
Temperature Accuracy ±0.5°C/±1.5°C °C
Temperature Range 0°C to 125°C °C
Temperature Resolution 0.5°C °C
Other Properties
Certifications
Certifications
Confirmation of tested functions, characteristics of a product.
 IP55, UL913
