TempMate S1 v3 | USB Temperature Logger

Harmonization Code : 9031.90.90.95 |   Parts And Accessories For Measuring Or Checking Instruments, Appliances And Machines
Main features
  • -30°C to +70°C
  • Single Use - 200 Days recording
  • USB - Automatic PDF & CSV report

Product Description

*NOTE: When ordering from stock minimum guaranteed battery life is 15 months. Need the full 2 year battery life? Contact us.

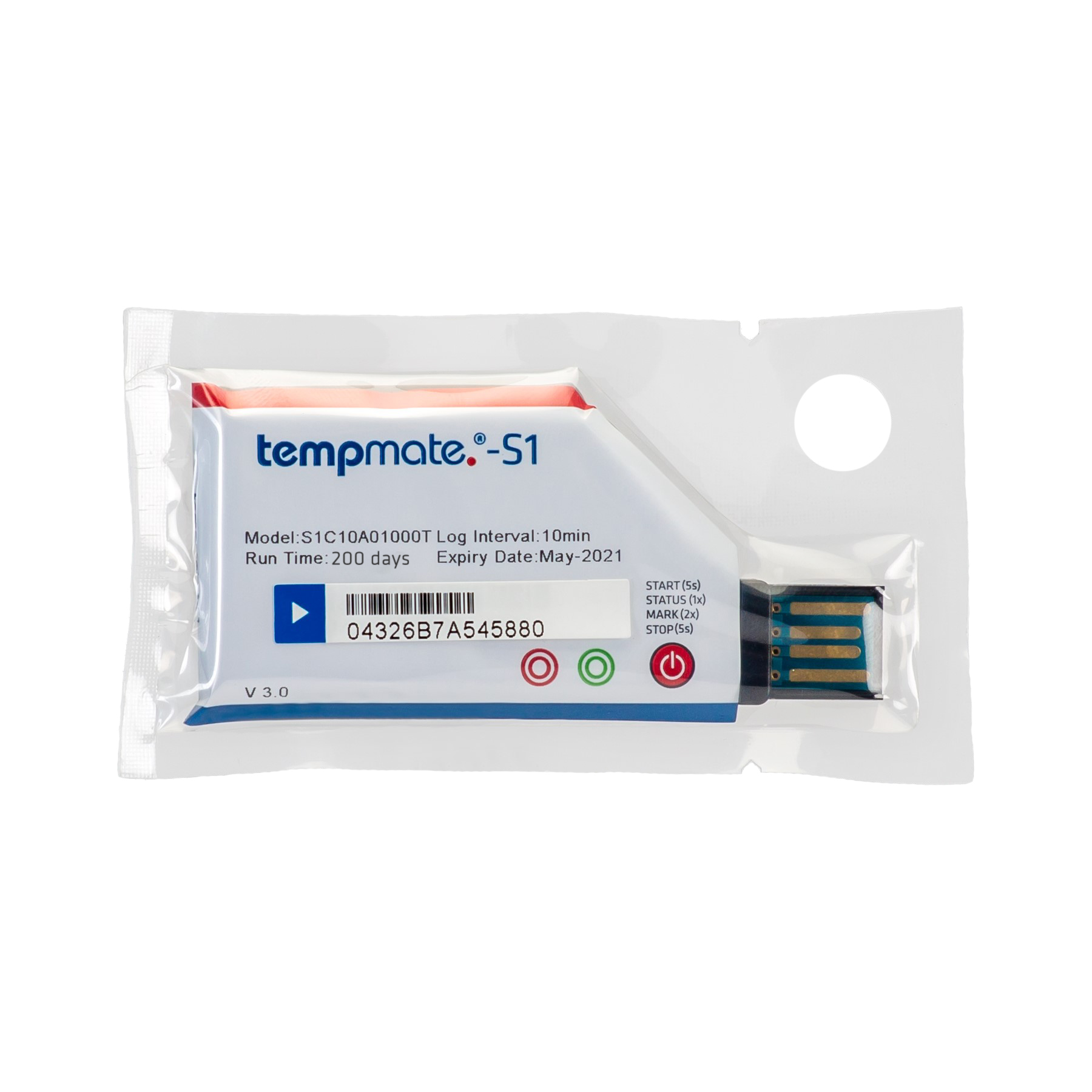

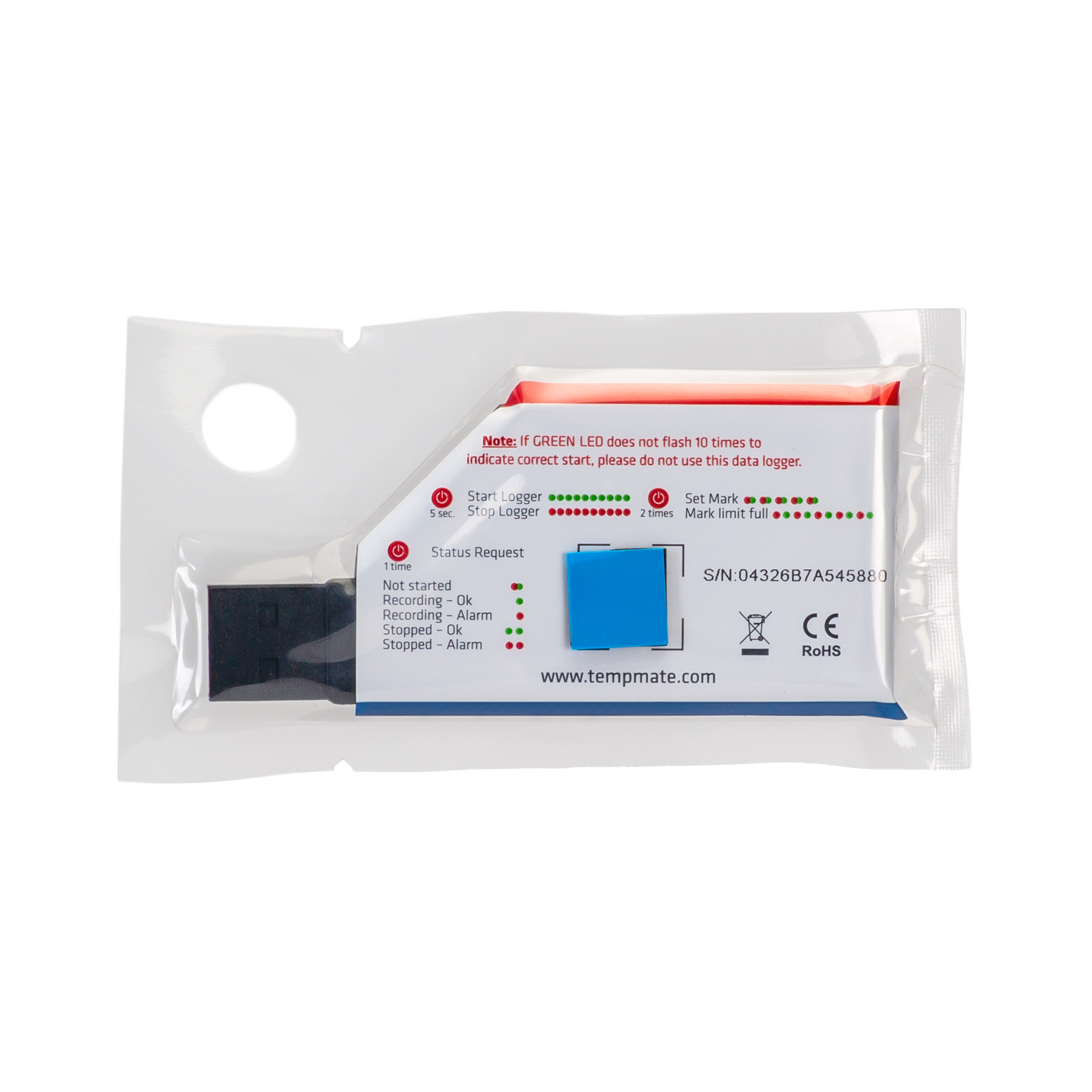

CAPLINQ introduces tempMate® S1 v3.The new tempmate.®-S1 logger has an integrated USB port and PDF & CSV generating software on-board, so no further software or hardware is required to connect the logger and read the recorded temperature data. The tempmate.®-S1 data logger has an accuracy of ± 0.2°C and comes with a 6 point Certificate of Validation. This validation, straight from the manufacturer, saves you time, money, and offers quality assurance for your compliance needs.

tempmate.®-S1 loggers are specially designed for temperature monitoring in any cold chain logistics. As a pre-programmed device, tempmate.®-S1 can be instantly used to monitor your temperature sensitive consignment. The automatically created PDF and CSV report, containing detailed information such as data curve, every single temperature measurement as a table and statistical information. The device does not require labeling per IATA´s Dangerous Goods Regulations.

Applications for Single-use USB Temperature Data Loggers

Single-use data loggers make sense whenever it is too complicated or too expensive to get the devices back and to reuse them. TempMate disposable loggers are the perfect solution for export shipments of any temperature-sensitive product. Applications of USB temperature data loggers include but are not limited to:

  • Pharmaceuticals
  • Blood Transportation
  • Vaccines
  • Epoxies and Adhesives
  • Flowers, Plants & Trees
  • Varnishes
Product Part Number
Tempmate S1 v3

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Auto CSV Generation
Auto CSV Generation
CSV (comma-separated values) is a simple data file for spreadsheet software.
 Yes
Auto PDF Generation
Auto PDF Generation
PDF (Portable Document Format) will convert a generated document into a pdf file
 Yes
Battery Included Yes
Battery Type
Battery Type
Specific types of battery that can vary from Nickel Cadmium, Nickel-Metal Hydride, Lead Acid Battery, Lithium Ion battery and more.
 CR2450 button cell
Color
Color
The color
 Multi
Connection Interface
Connection Interface
Is an interface between two pieces of equipments that functions such as passing messages, connecting and disconnecting, etc.
 USB 2.0
Data Storage Capacity
Data Storage Capacity
The amount of readings that can be stored in the device
 31,200 readings
Number of Uses Single-Use
Recording Cycle 200 days
Recording Interval 10 min
Reprogrammable Yes
Software PDF, CSV, Cloud
Startup Mode Press Button, Preprogrammed
Stop Mode Press Button, Software or Data limit
Shelf Life
Shelf Life
Shelf life is the amount of time after manufacturing that a product is guaranteed to retain its properties.

It differs vastly per product and it is based on temperature and storage conditions.

The properties can be guaranteed for the temperature and time range indicated on the TDS since those are the ones tested to be the best for the product.
Shelf Life @ 15°C >24 months
Thermal Properties
Temperature Accuracy 0.2/0.5 °C
Temperature Range -30 to 70 °C
Temperature Resolution 0.1 °C
Other Properties
Certifications
Certifications
Confirmation of tested functions, characteristics of a product.
 EN 12830, FCC, CE
RoHS Compliant
RoHS Compliant
RoHS is a product level compliance based on a European Union Directive which restricts the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).

Products compliant with this directive do not exceed the allowable amounts of the following restricted materials: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE), with some limited exemptions
 Yes
