TG 2800I | Thermal Grease

Harmonization Code : 3824.99.96.99 |   Prepared binders for foundry moulds or cores; chemical products and preparations of the chemical or allied industries (including those consisting of mixtures of natural products), not elsewhere specified or included : Other : Other: Other
Main features
  • 0.009 Thermal Impedance
  • 2.8 Thermal Conductivity
  • 25μm BLT

Product Description

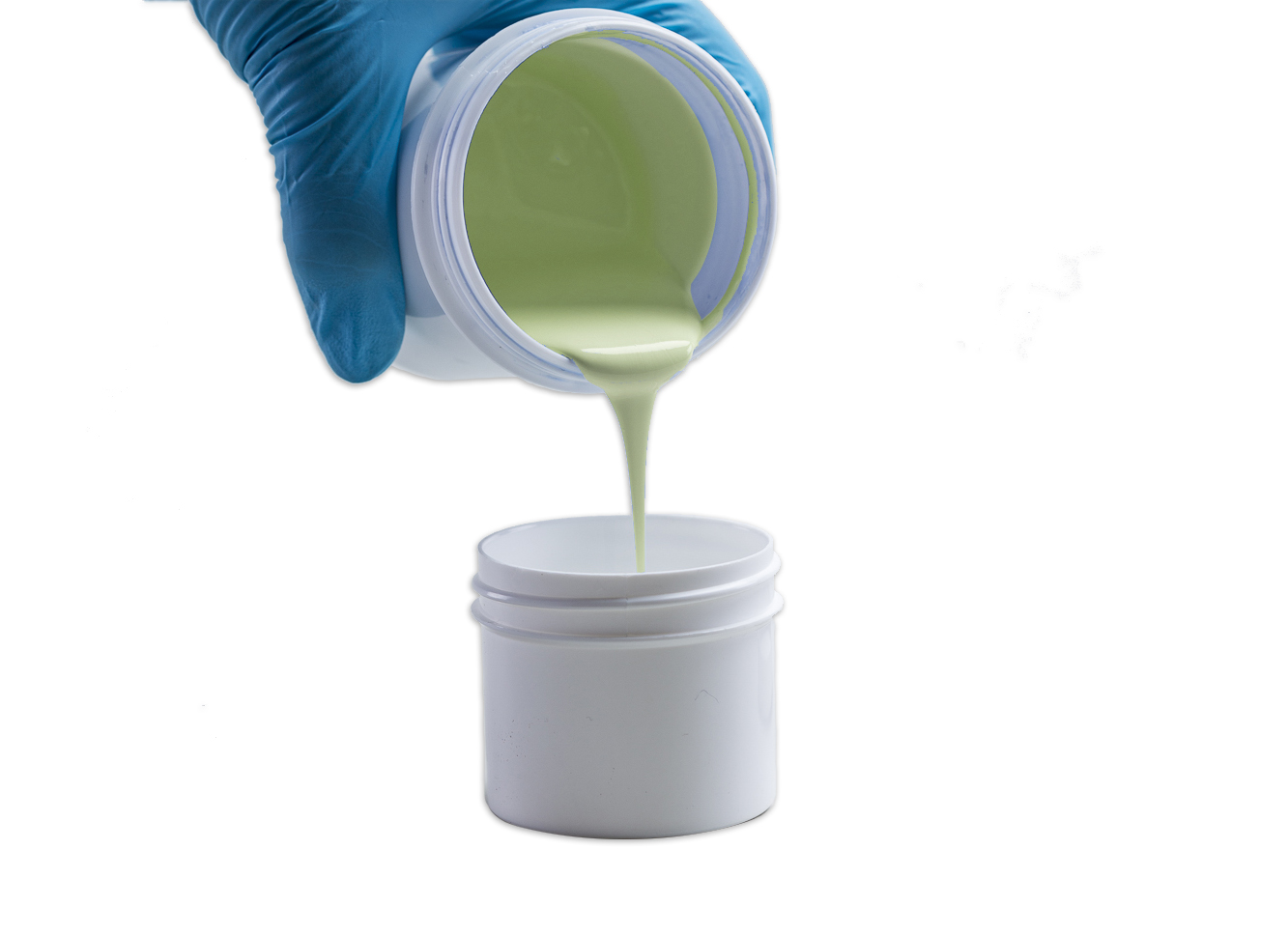

TG2800I Thermal Silicone Grease provides superior thermal performance with ease of use across a multitude of applications. Its low viscosity and excellent thixotropy make it fit for large–scale production with dispensing, screen printing and stencil printing.

TG2800I  is developed with 2.8 TC and 0.009 TI to meet basic power density requirements. It is designed to minimize thermal resistance at interfaces, and maintain excellent performance through reliability testing Thermal greases are available with different BLT to meet different interface flatness. TG2000I in particular can reach a bond line thickness of 25 micron @35psi, 50oC. Its operating temperature range is -40oC to 150oC similar to the entire Thermal grease product range.

Product Family
TG2800I
1Kg Jar

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 6 - 8 weeks Shipping in 6 - 8 weeks Shipping in 6 - 8 weeks
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Color
Color
The color
 Yellow
Specific Gravity
Specific Gravity
Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume.

For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless.
 4.2
Physical Properties
Viscosity
Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application
 100,000 mPa.s
Electrical Properties
Dielectric Constant
Dielectric Constant
Dielectric Constant (k), commonly known as relative permittivity, is a number relating the ability of a material to carry alternating current to the ability of vacuum to carry alternating current.

It determines the ability of an insulator to store electrical energy and is the ratio of electric permeability in vacuum against the electric permeability of a material.

The lower the dielectric constant (κ) and dissipation factor, the less energy is absorbed from an electric field, making it a much better insulator.

It is a dimensionless property that can be affected by various factors such as the
thickness uniformity of a material, insufficient contact between the sample and electrodes, water adsorption and contact resistance.
Dielectric Constant @ 1000 kHz 14
Volume Resistivity
Volume Resistivity
Volume resistivity, also called volume resistance, bulk resistance or bulk resistivity is a thickness dependent measurement of the resistivity of a material perpendicular to the plane of the surface.
 1.3x1013 Ohms⋅cm
Thermal Properties
Thermal Conductivity
Thermal Conductivity
Thermal conductivity describes the ability of a material to conduct heat. It is required by power packages in order to dissipate heat and maintain stable electrical performance.

Thermal conductivity units are [W/(m K)] in the SI system and [Btu/(hr ft °F)] in the Imperial system.
 2.8 W/m.K
Thermal Impedance 0.009 °C·cm²/W
UL 94 Rating
UL 94 Rating
Flammability rating classification.
It determines how fast a material burns or extinguishes once it is ignited.

HB: slow burning on a horizontal specimen; burning rate less than 76 mm/min for thickness less than 3 mm or burning stops before 100 mm
V-2: burning stops within 30 seconds on a vertical specimen; drips of flaming particles are allowed.
V-1: burning stops within 30 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed.
V-0: burning stops within 10 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed.
5VB: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may develop a hole.
5VA: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may not develop a hole
 V-0
